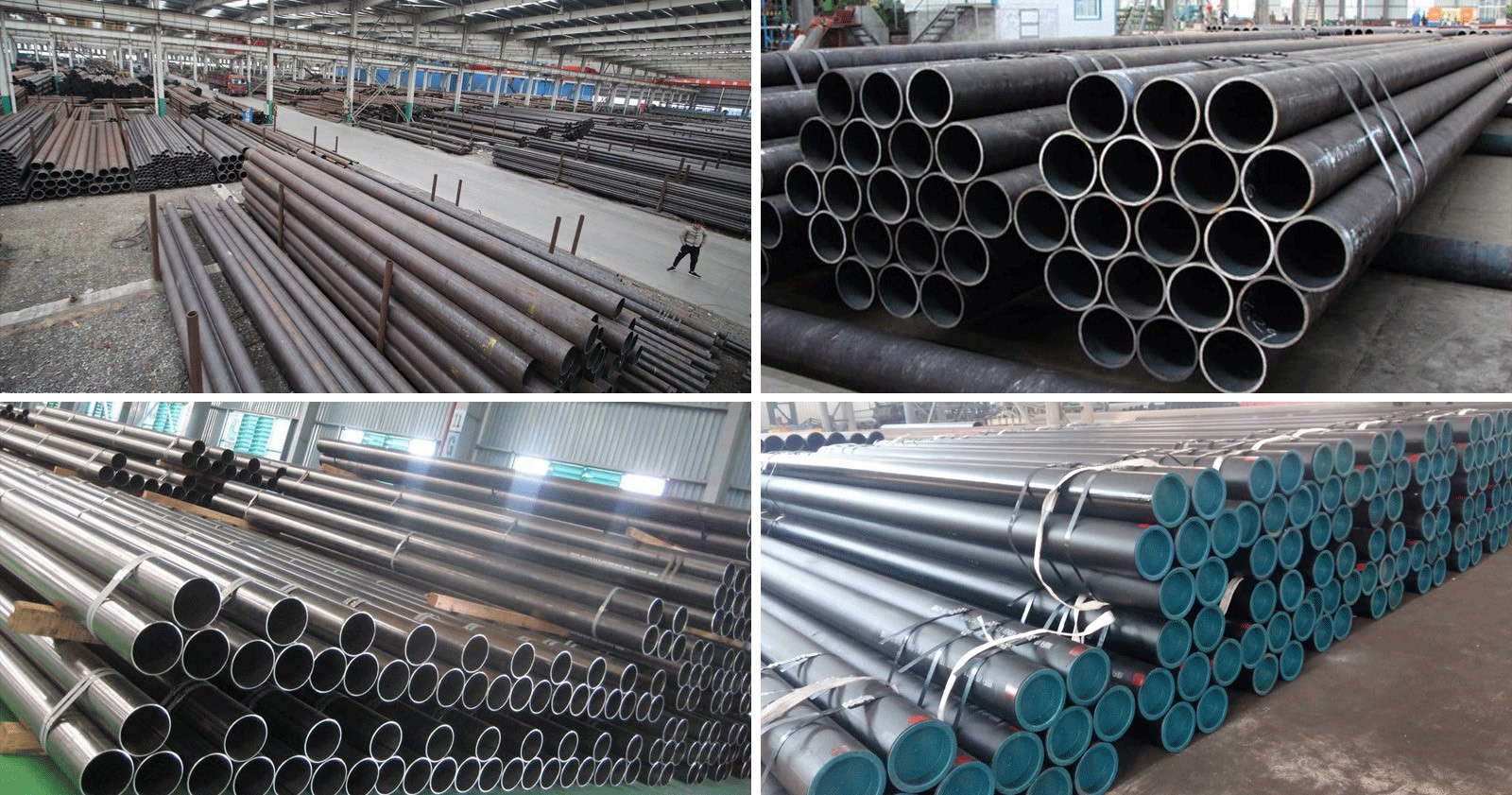

Seamless Steel Pipe(SMLS)
The process begins with solid steel rounds, or billets, being cut to a specified length and sent through a walking-beam reheat furnace, where temperatures reach nearly 2,300°F. After exiting the reheat furnace, the preheated rounds are turned into a tube shell in the rotary piercing mill as the billets are cross-rolled between two barrel-shaped rolls at a high speed. The seamless shells enter mandrel mill, where they are rolled over a retained mandrel to provide the needed OD size and wall thickness for the next process. The process is carefully monitored using a state-of-the-art hot-wall measuring system. The shells are then reheated for final forming in a 24-stand stretch-reducing mill, where outside diameters are formed to customers’ exacting specifications. Wall thickness is again verified using a hot-wall measuring system. After being rotated and advanced on the walking-beam cooling bed, the pipes are batch cut and transferred to an in-process storage area, where they are handled

Special specifications can be customized according to customer requirements, please contact us to explain separately!

Contact us
Seamless Steel Pipe(SMLS)
Description
Specification
Images
Seamless Steel Pipe & Tube, Carbon Seamless Steel Pipe,SMLS Pipe & Tube, CS Seamless Pipe

Black Seamless Pipe, GI Seamless Pipe


Uses:

Chilled water pipeSteam/condensate pipeHeat exchanger pipeMarine/offshore pipeDredging pipeIndustrial pipe
Oil and gas pipeFire fighting pipeConstruction/structure pipeIrrigation pipeDrain/sewage pipeBoiler tube

Coating:

3PE Coating3PP CoatingFBE CoatingEpoxy CoatingSpecial Painting


Standard of carbon seamless steel pipe

ASTM A53 Gr.BBlack and hot-dipped zinc-coated steel pipes welded and seamless
ASTM A106 Gr.BSeamless carbon steel for high temperature service
ASTM SA179Seamless cold-drawn low-carbon steel heat exchanger and condenser tubes
ASTM SA192Seamless carbon steel boiler tubes for high pressure
ASTM SA210Seamless Medium-carbon boiler and superheater tubes
ASTM A213Seamless alloy-steel boiler, superheater, and heat-exchanger tubes
ASTM A333 GR.6seamless and welded carbon and alloy steel pipe intended for use at low temperatures.
ASTM A335 P9,P11,T22,T91Seamless ferritic alloy-steel pipe for high-temperature service
ASTM A336Alloy steel forgings for pressure and high-temperature parts
ASTM SA519 4140/4130Seamless carbon for mechanical tubing
API Spec 5CT J55/K55/N80/L80/P110/K55Seamless steel pipe for casing
API Spec 5L PSL1/PSL2 Gr.b, X42/46/52/56/65/70Seamless steel pipe for line pipe
DIN 17175Seamless steel tube for elevated temperture
DN2391Cold drawn seamless prevision pipe
DIN 1629Seamless circular unalloyed steel tubes subject to special requirements


Chemical components & mechanical properties

StandardGradeChemical Components (%)Mechanical Properties
ASTM A53CSiMnPSTensile STrength(Mpa)Yield STrength(Mpa)
A≤0.25-≤0.95≤0.05≤0.06≥330≥205
B≤0.30-≤1.2≤0.05≤0.06≥415≥240
ASTM A106A≤0.30≥0.100.29-1.06≤0.035≤0.035≥415≥240
B≤0.35≥0.100.29-1.06≤0.035≤0.035≥485≥275
ASTM SA179A1790.06-0.18-0.27-0.63≤0.035≤0.035≥325≥180
ASTM SA192A1920.06-0.18≤0.250.27-0.63≤0.035≤0.035≥325≥180
API 5L PSL1A0.22-0.90.030.03≥331≥207
B0.28-1.20.030.03≥414≥241
X420.28-1.30.030.03≥414≥290
X460.28-1.40.030.03≥434≥317
X520.28-1.40.030.03≥455≥359
X560.28-1.40.030.03≥490≥386
X600.28-1.40.030.03≥517≥448
X650.28-1.40.030.03≥531≥448
X700.28-1.40.030.03≥565≥483
API 5L PSL2B0.24-1.20.0250.015≥414≥241
X420.24-1.30.0250.015≥414≥290
X460.24-1.40.0250.015≥434≥317
X520.24-1.40.0250.015≥455≥359
X560.24-1.40.0250.015≥490≥386
X600.24-1.40.0250.015≥517≥414
X650.24-1.40.0250.015≥531≥448
X700.24-1.40.0250.015≥565≥483
X800.24-1.40.0250.015≥621≥552


Classfication of carbon seamless steel pipe

TypesApplication
Structure PurposesGeneral structure and mechanical
Liquid ServicesPetroleum, gas and other fluids conveying
Low and Medium Pressure Boiler TubeSteam and boiler manufacturing
Hydraulic Pillar ServiceHydraulic support
Auto Semi-shaft CasingAuto sem-shaft casing
Line PipeOil and gas conveying
Tubing and CasingOil and gas conveying
Drill PipesWell drilling
Geological Drilling PipeGeological drilling
Furnace tubes, heat exchangers tubesFurnace tubes, heat exchangers


Tolerances of carbon seamless steel pipe

Pipe typesPipe sizes(mm)Tolerances
Hot rolledOD<50±0.50mm
OD≥50±1%
WT<4±12.5%
WT 4~20+15%, -12.5%
WT>20±12.5%
Cold drawnOD 6~10±0.20mm
OD 10~30±0.40mm
OD 30~50±0.45
OD>50±1%
WT≤1±0.15mm
WT 1~3+15%, -10%
WT >3+12.5%, -10%


Sizes:

Maximum diameter: 36" (914.4mm)      minimum diameter: 1/2" (21.3mm)
Maximum thickness: 60mm                     mininmum thickness: 2.11mm

SCH: SCH10,SCH20,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH160,XXS


NOMINAL  PIPE  SIZEOD(mm)NOMINAL WALL THICKNESS
DNNB(inch)ASMESCH10SCH20SCH30STDSCH40SCH60XSSCH80SCH100SCH120SCH140SCH160XXS
151/2"21.32.11
2.412.772.77
3.733.73


4.787.47
203/4"26.72.11
2.412.872.87
3.913.91


5.567.82
251"33.42.77
2.93.383.38
4.554.55


6.359.09
321.1/4"42.22.77
2.973.563.56
4.854.85


6.359.7
401.1/2"48.32.77
3.183.683.68
5.085.08


7.1410.15
502"60.32.77
3.183.913.91
5.545.54


8.7411.07
652.1/2"733.05
4.785.165.16
7.017.01


9.5314.02
803"88.93.05
4.785.495.49
7.627.62


11.1315.25
903.1/2"101.63.05
4.785.745.74
8.088.08




1004"114.33.05
4.786.026.02
8.568.56
11.13
13.4917.12
1255"141.33.4

6.556.55
9.539.53
12.7
15.8819.05
1506"168.33.4

7.117.11
10.9710.97
14.27
18.2621.95
2008"219.13.766.357.048.188.1810.3112.712.715.0918.2620.6223.0122.23
25010"2734.196.357.89.279.2712.712.715.0918.2621.4425.428.5825.4
30012"323.84.576.358.389.5310.3114.2712.717.4821.4425.428.5833.3225.4
35014"355.66.357.929.539.5311.1315.0912.719.0523.8327.7931.7535.71
40016"406.46.357.929.539.5312.716.6612.721.4426.1930.9636.5340.19
45018"457.26.357.9211.139.5314.2719.0512.723.8339.3634.9339.6745.24
50020"5086.359.5312.79.5315.0920.6212.726.1932.5438.144.4550.01
55022"558.86.359.5312.79.53
22.2312.728.5834.9341.2847.6353.98
60024"609.66.359.5314.279.5317.4824.6112.730.9638.8946.0252.3759.54
65026"660.47.9212.7
9.53

12.7





70028"711.27.9212.715.889.53

12.7





75030"7627.9212.715.889.53

12.7





80032"812.87.9212.715.889.5317.48
12.7





85034"863.67.9212.715.889.5317.48
12.7





90036"914.47.9212.715.889.5319.05
12.7






Seamless Steel Pipe(SMLS)

Maximum diameter: 36" (914.4mm)         minimum diameter: 1/4" (13.7mm)

Maximum thickness: 60mm          mininmum thickness: 2.11mm
